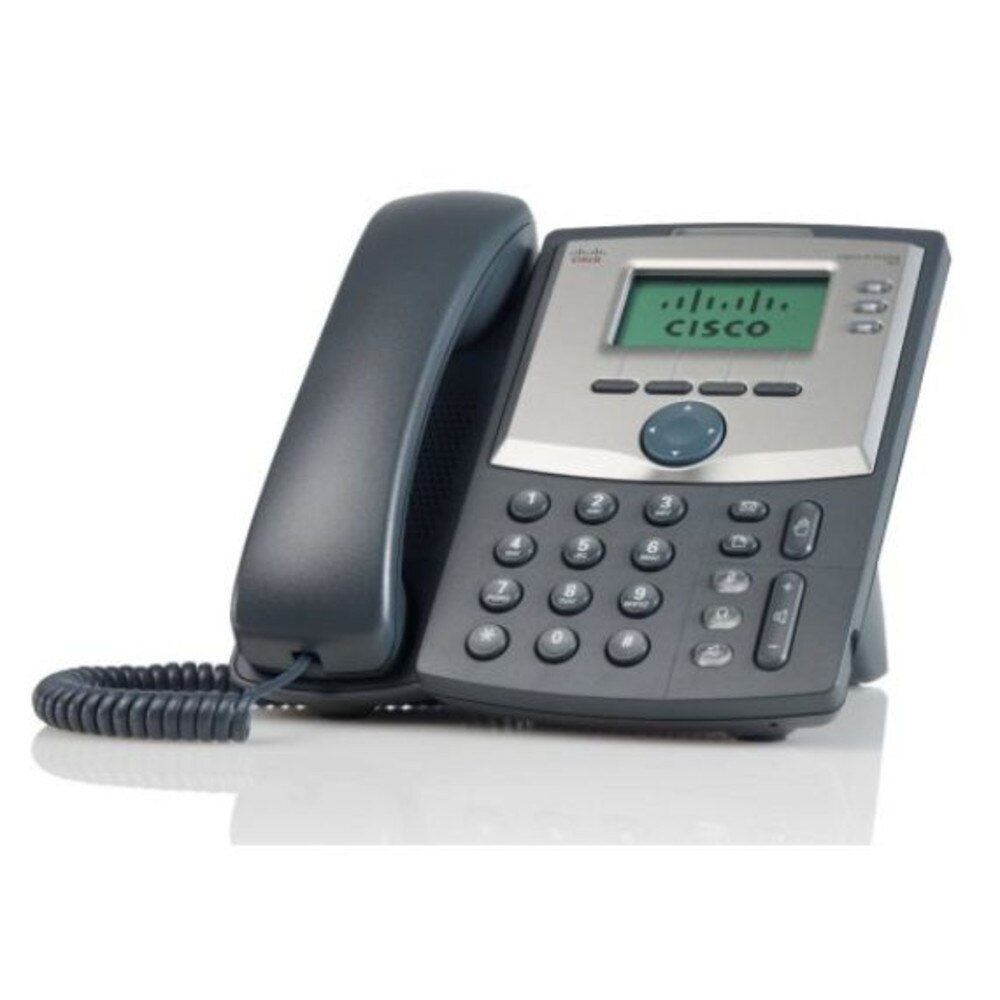

SPA303-G1-LN

Description

The SPA303-G1-LN is a basic yet highly reliable 3-line IP phone designed for small businesses and home office environments. Part of the Cisco Small Business SPA series, it provides a professional communication solution that is both easy to deploy and compatible with a wide range of VoIP service providers.

Core Technical Specifications

• Line Support: 3 active lines with independent configurations.

• Display: Monochrome graphical LCD ($128 \times 64$ resolution).

• Ethernet Ports: Two switched 10/100 Mbps RJ-45 ports (one for the network, one for PC passthrough).

• Audio Codecs: Supports G.711 (a-law and u-law), G.726, G.729a, and G.722 (wideband).

• Protocol Support: Operates on the Session Initiation Protocol (SIP).

Key Features and Functionality

• Interoperability: Unlike proprietary models, this phone is designed to work with most SIP-based IP-PBX systems, including Asterisk, FreePBX, and hosted VoIP platforms.

• Dedicated Function Keys: Features fixed buttons for common tasks such as Mute, Hold, Speakerphone, Settings, and Volume control.

• Three-Way Conferencing: Allows for local three-way conferencing without the need for a centralized bridge.

• Status Indicators: Includes an integrated message-waiting indicator light and line-status LEDs to keep track of active calls.

• Menu-Driven Interface: The graphical display provides access to a variety of settings, including call history, directories, and user preferences.
