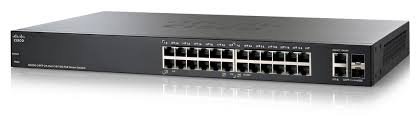

SLM224PT-NA-RF

Description

The SLM224PT-NA-RF is a Cisco Small Business 200 Series Smart Switch, specifically a Remanufactured (RF) unit designed to provide high-performance switching and Power over Ethernet (PoE) for growing business networks. This 24-port switch offers a balance of Fast Ethernet connectivity and Gigabit uplinks.

Core Technical Specifications

• Port Configuration: * 24 Fast Ethernet (10/100 Mbps) ports.

  • 2 Gigabit Ethernet (10/100/1000 Mbps) combo ports (RJ-45 + SFP).

• PoE Capability: Supports Power over Ethernet (PoE) on 12 of the 24 ports, with a total power budget of 100W.

• Switching Capacity: 8.8 Gbps non-blocking switching capacity.

• Forwarding Rate: 6.55 Mpps (million packets per second).

• Form Factor: 1U Rack-mountable design.

Key Features and Capabilities

• Smart Management: We can easily manage the network via a browser-based configuration utility, eliminating the need for complex command-line programming.

• Network Security: Includes integrated security features like IEEE 802.1X port security to control access to the network and prevent unauthorized users.

• Quality of Service (QoS): Prioritizes voice and video traffic to ensure that delay-sensitive applications like VoIP phones or surveillance cameras run smoothly.

• Energy Efficiency: Designed with power-saving features that reduce energy consumption by monitoring link status and adjusting power based on cable length.

• IPv6 Support: Built to handle the transition to the next generation of IP addressing, ensuring long-term compatibility.
