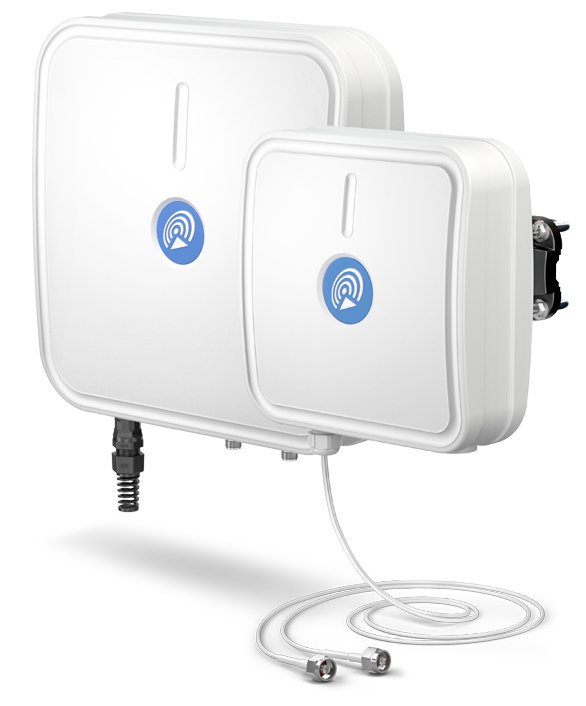

QuWireless AXR12 network antenna Directional antenna 7 dBi

Brand: QuWireless

Part # AXR12

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Performance
Antenna gain level (max) 7 dBi
Frequency band 0.6 – 2.7 GHz
Vertical beam width 70°
Impedance 50 Ω
Horizontal beam width 70°
Gain 7 dBi
Antenna gain (2.4 GHz) 7 dBi
Features
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
International Protection (IP) code IP67
Antenna gain level (max) 7 dBi
Frequency band 0.6 – 2.7 GHz
Antenna type Directional antenna
Voltage Standing Wave Ratio (VSWR) 1.7 – 2
Vertical beam width 70°
Polarization Dual polarization
Mounting Ceiling/wall
Impedance 50 Ω
Horizontal beam width 70°
Gain 7 dBi
Product colour White
Cable length 5 m
Antenna gain (2.4 GHz) 7 dBi
Technical details
Antenna gain level (max) 7 dBi
Frequency band 0.6 – 2.7 GHz
Antenna type Directional antenna
Voltage Standing Wave Ratio (VSWR) 1.7 – 2
Vertical beam width 70°
Polarization Dual polarization
Mounting Ceiling/wall
Impedance 50 Ω
Horizontal beam width 70°
Gain 7 dBi
Cable length 5 m
Antenna gain (2.4 GHz) 7 dBi
Colour
Product colour White
Operational conditions
Operating temperature (T-T) -40 – 75 °C
Weight & dimensions
Weight 1.8 kg
Width 272 mm
Depth 276 mm
Height 96 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
Manufacturer QuWireless
Availability Y
Meta Description LTE, Directional, 7dBi, 0.6 – 2.7 GHz, 50 Ω, 70°/70°, 1.7 – 2 VSWR
