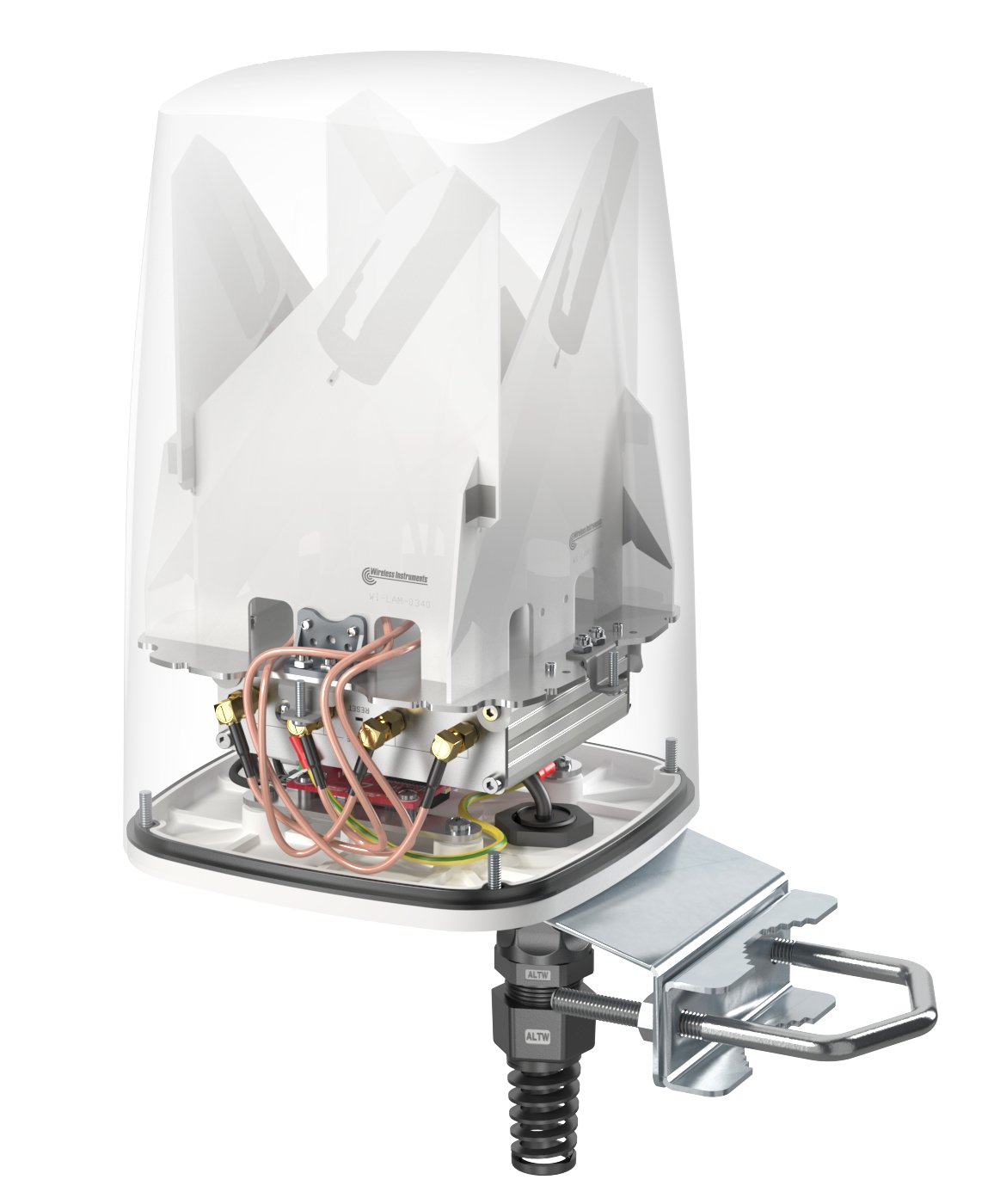

QuWireless AX50S network antenna Omni-directional antenna PoE/LAN 4.5 dBi

Brand: QuWireless

Part # AX50S

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Performance
Antenna gain level (max) 4.5 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 25°
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 360°
Gain 2 / 4.5 dBi
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Features
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE)
International Protection (IP) code IP67
Antenna type Omni-directional antenna
Voltage Standing Wave Ratio (VSWR) 2.00
Purpose Indoor & outdoor
Polarization Vertical polarization
Mounting Wall/Pole
Product colour White
Antenna connector type PoE/LAN
Compatible products RUTX50
Country of origin Poland
Antenna gain level (max) 4.5 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 25°
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 360°
Gain 2 / 4.5 dBi
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Operational conditions
Operating temperature (T-T) -40 – 75 °C
Weight & dimensions
Weight 1.5 kg
Width 160 mm
Depth 160 mm
Height 240 mm
Technical details
Antenna gain level (max) 4.5 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz
Antenna type Omni-directional antenna
Voltage Standing Wave Ratio (VSWR) 2.00
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 25°
Purpose Indoor & outdoor
Polarization Vertical polarization
Mounting Wall/Pole
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 360°
Gain 2 / 4.5 dBi
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Antenna connector type PoE/LAN
Compatible products RUTX50
Colour
Product colour White
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Country of origin Poland
Quantity per pack 1 pc(s)
Manufacturer QuWireless
Availability Y
Meta Description Antenna QuSpot for Teltonika RUTX50
