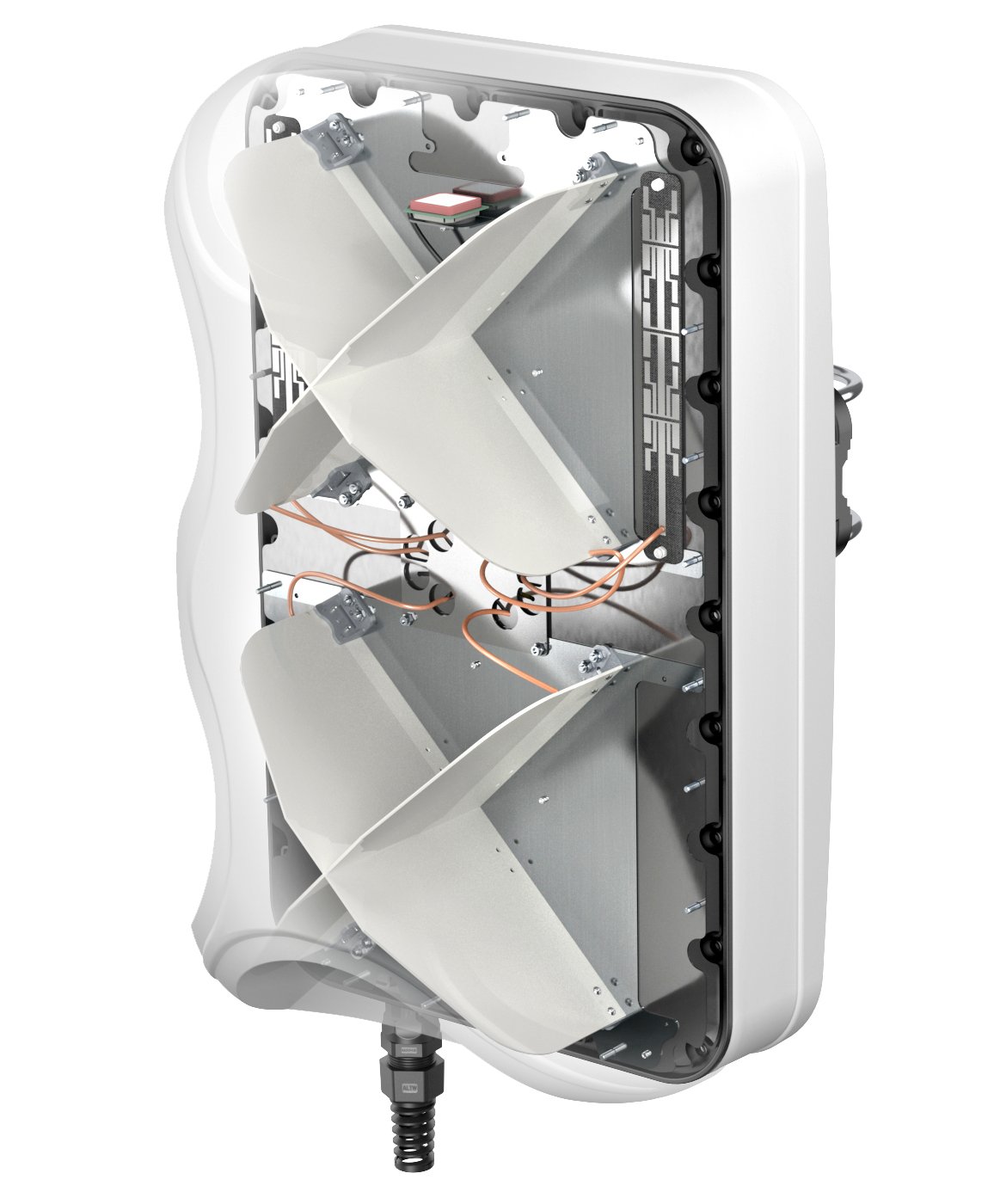

QuWireless AX50M network antenna Directional antenna PoE/LAN 7 dBi

Brand: QuWireless

Part # AX50M

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Performance
Antenna gain level (max) 7 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.6/4.7-6; 2.4-2.5/5.0-7.125 GHz
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 80°
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 80°
Gain 6 / 7 dBi
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Features
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE)
Country of origin Poland
International Protection (IP) code IP67
Antenna gain level (max) 7 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.6/4.7-6; 2.4-2.5/5.0-7.125 GHz
Antenna type Directional antenna
Voltage Standing Wave Ratio (VSWR) 3.00
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 80°
Purpose Indoor & outdoor
Polarization Dual polarization
Mounting Wall/Pole
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 80°
Gain 6 / 7 dBi
Product colour White
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Antenna connector type PoE/LAN
Compatible products RUTX50
Technical details
Antenna gain level (max) 7 dBi
Frequency band 0.617-0.96/1.7-2.7/3.3-4.6/4.7-6; 2.4-2.5/5.0-7.125 GHz
Antenna type Directional antenna
Voltage Standing Wave Ratio (VSWR) 3.00
Vertical beam width (5 GHz) 25°
Vertical beam width (2.4 GHz) 25°
Vertical beam width 80°
Purpose Indoor & outdoor
Polarization Dual polarization
Mounting Wall/Pole
Impedance 50 Ω
Horizontal beam width (5 GHz) 360°
Horizontal beam width (2.4 GHz) 360°
Horizontal beam width 80°
Gain 6 / 7 dBi
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 6 dBi
Antenna connector type PoE/LAN
Compatible products RUTX50
Colour
Product colour White
Operational conditions
Operating temperature (T-T) -40 – 80 °C
Weight & dimensions
Weight 2.8 kg
Width 486 mm
Depth 292.2 mm
Height 105.6 mm
Manufacturer QuWireless
Availability Y
Meta Description Antenna QuMax for Teltonika RUTX50
