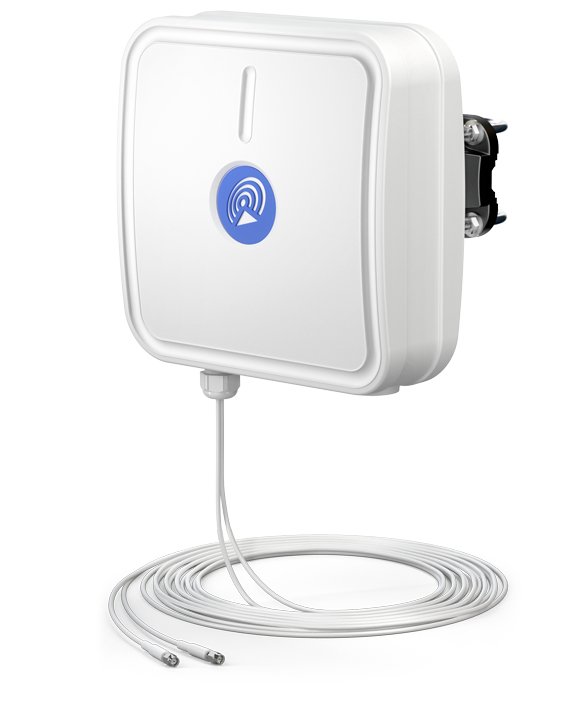

QuWireless AP5G2-1 network antenna MIMO directional antenna SMA 7.5 dBi

Brand: QuWireless

Part # AP5G2-1

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Performance
Antenna gain level (max) 7.5 dBi
Frequency band 0.694-0.96/1.7-2.2/2.2-2.7/3.3-3.8 GHz
Vertical beam width 70°
Impedance 50 Ω
Horizontal beam width 70°
Gain 7.5 dBi
Features
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
Country of origin Poland
International Protection (IP) code IP67
Antenna gain level (max) 7.5 dBi
Frequency band 0.694-0.96/1.7-2.2/2.2-2.7/3.3-3.8 GHz
Antenna type MIMO directional antenna
Voltage Standing Wave Ratio (VSWR) 1.7 – 2
Vertical beam width 70°
Purpose Indoor & outdoor
Polarization Dual polarization
Mounting Wall/Pole
Impedance 50 Ω
Horizontal beam width 70°
Gain 7.5 dBi
Product colour White
Cable length 10 m
Antenna connector type SMA
Technical details
Antenna gain level (max) 7.5 dBi
Frequency band 0.694-0.96/1.7-2.2/2.2-2.7/3.3-3.8 GHz
Antenna type MIMO directional antenna
Voltage Standing Wave Ratio (VSWR) 1.7 – 2
Vertical beam width 70°
Purpose Indoor & outdoor
Polarization Dual polarization
Mounting Wall/Pole
Impedance 50 Ω
Horizontal beam width 70°
Gain 7.5 dBi
Cable length 10 m
Antenna connector type SMA
Colour
Product colour White
Operational conditions
Operating temperature (T-T) -40 – 75 °C
Weight & dimensions
Weight 1.8 kg
Width 276 mm
Depth 276 mm
Height 96 mm
Manufacturer QuWireless
Availability Y
Meta Description Antenna QuPanel 5G/LTE MIMO 2×2, 10m
