MR42-HW-LN

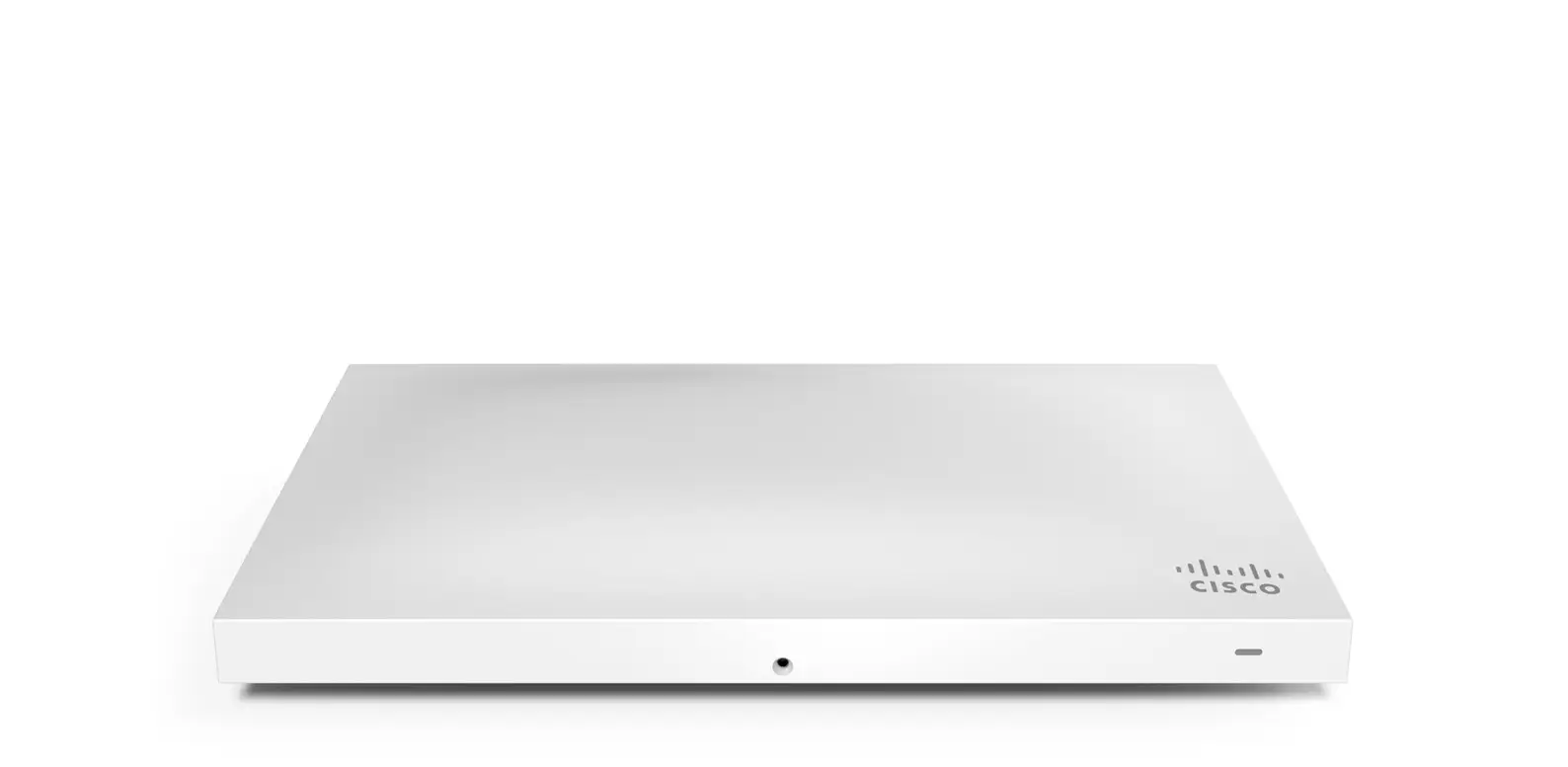

The MR42-HW-LN is a high-performance, cloud-managed 802.11ac Wave 2 access point designed for high-density environments. It utilizes a four-radio architecture to provide maximum throughput, enterprise-grade security, and integrated Bluetooth capabilities.

Technical Specifications

• Radio Configuration: 3×3:3 MU-MIMO (Multiple Input, Multiple Output) with three spatial streams.

• Throughput: Combined dual-band data rate of up to 1.9 Gbps.

  • 1.3 Gbps at 5 GHz.

  • 600 Mbps at 2.4 GHz.

• Dedicated Fourth Radio: A permanent scanning radio that continuously monitors the RF environment for security threats (WIDS/WIPS) and interference.

• Integrated BLE: Built-in Bluetooth Low Energy radio for beaconing, asset tracking, and location analytics.

• Power: Powered via PoE (802.3at recommended) or a DC power adapter.

Key Features and Capabilities

• Cloud Management: Managed through a centralized dashboard, allowing for seamless firmware updates, configuration, and monitoring without the need for an on-site controller.

• MU-MIMO Technology: Efficiently serves multiple clients simultaneously, significantly increasing total network capacity and improving the user experience in crowded areas.

• Spectrum Analysis: The dedicated security radio provides real-time visibility into RF interference, automatically optimizing channel selection for peak performance.

• Layer 7 Traffic Shaping: We can classify and prioritize hundreds of applications, ensuring bandwidth is reserved for critical business tools while limiting recreational traffic.
