Brand: HPE
Part # JG303B
Condition: New
Availability: In Stock
Fill in the details Below For Discounted Price

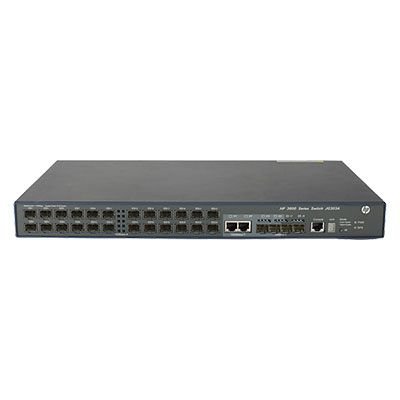

| Device Type | Switch – 24 ports – L3 – Managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 100 Mbit SFP + 4 x Gigabit SFP + 2 x combo 1000Base-T |
| Performance | Throughput:up to 9.5 Mpps Routing/switching capacity:12.8 Gbps |
| Capacity | IPv4 routing table entries:12000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF,IS-IS,RIP-1,RIP-2,BGP,IGMPv2,IGMP,VRRP,OSPFv2,PIM-SM,PIM-DM,IGMPv3,OSPFv3,PIM-SSM,MSDP,static IPv4 routing,static IPv6 routing,ECMP,RIPng,MLD,BGP-4+,Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1,RMON 1,RMON 2,RMON 3,RMON 9,Telnet,SNMP 3,SNMP 2c,HTTP,HTTPS,CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH),RADIUS,Secure Shell v.2 (SSH2),HWTACACS |
| Features | Flow control,routing,Layer 2 switching,DHCP support,ARP support,VLAN support,auto-uplink (auto MDI/MDI-X),IGMP snooping,Syslog support,Weighted Round Robin (WRR) queuing,IPv6 support,Weighted Fair Queuing (WFQ),Weighted Random Early Detection (WRED),sFlow,Spanning Tree Protocol (STP) support,Rapid Spanning Tree Protocol (RSTP) support,Virtual Route Redundancy Protocol (VRRP) support,Multiple Spanning Tree Protocol (MSTP) support,Trivial File Transfer Protocol (TFTP) support,Access Control List (ACL) support,Quality of Service (QoS),Committed Access Rate (CAR),Jumbo Frames support,MLD snooping,Device Link Detection Protocol (DLDP) support,Rapid Ring Protection Protocol (RRPP) support,Equal-Cost Multipath (ECMP),Bidirectional Forwarding Detection (BFD),Endpoint Admission Defense (EAD),STP Root Guard,LLDP support,Port Security,DHCP protection,port isolation,non blocking ports,Strict Priority (SP),Generic Attribute Registration Protocol (GARP),Intelligent Resilient Framework Technology (IRF),Multicast Source Discovery Protocol (MSDP) |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3i,IEEE 802.3z,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.3x,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.3ac,IEEE 802.1s,IEEE 802.1ad,IEEE 802.1v,IEEE 802.1ab (LLDP) |
| RAM | 256 MB SDRAM |
| Flash Memory | 128 MB |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x serial (console) – RJ-45 24 x 100Base-TX – SFP 4 x Gigabit LAN – SFP 2 x 1000Base-T |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | ETSI,CISPR 22 Class A,EN 61000-3-2,EN 61000-3-3,EN55022 Class A,EN 61000-4-4,EN 61000-4-2,EN 61000-4-3,EN 61000-4-6,ICES-003 Class A,EN 61000-4-5,EN 61000-4-11,RoHS,FCC CFR47 Part 15,UL 60950-1,IEC 60950-1,EN 60950-1,WEEE,FCC Part 15 A,FDA,EN 60825-1,CAN/CSA C22.2 No. 60950-1,AS/NZS,ANSI C63.4-2003,EN 60825-2,EN 61000-3-2:2006,VCCI Class A,EN 61000-3-3:1995+A1:2001+A2:2005,EMC 2004/108/EC,EN 300 386 V1.3.3 |
| Dimensions & Weight | |
| Width | 43.99 cm |
| Depth | 26.01 cm |
| Height | 4.37 cm |
| Weight | 5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – advance parts replacement – lifetime – response time:next business day |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 – 95% (non-condensing) |
