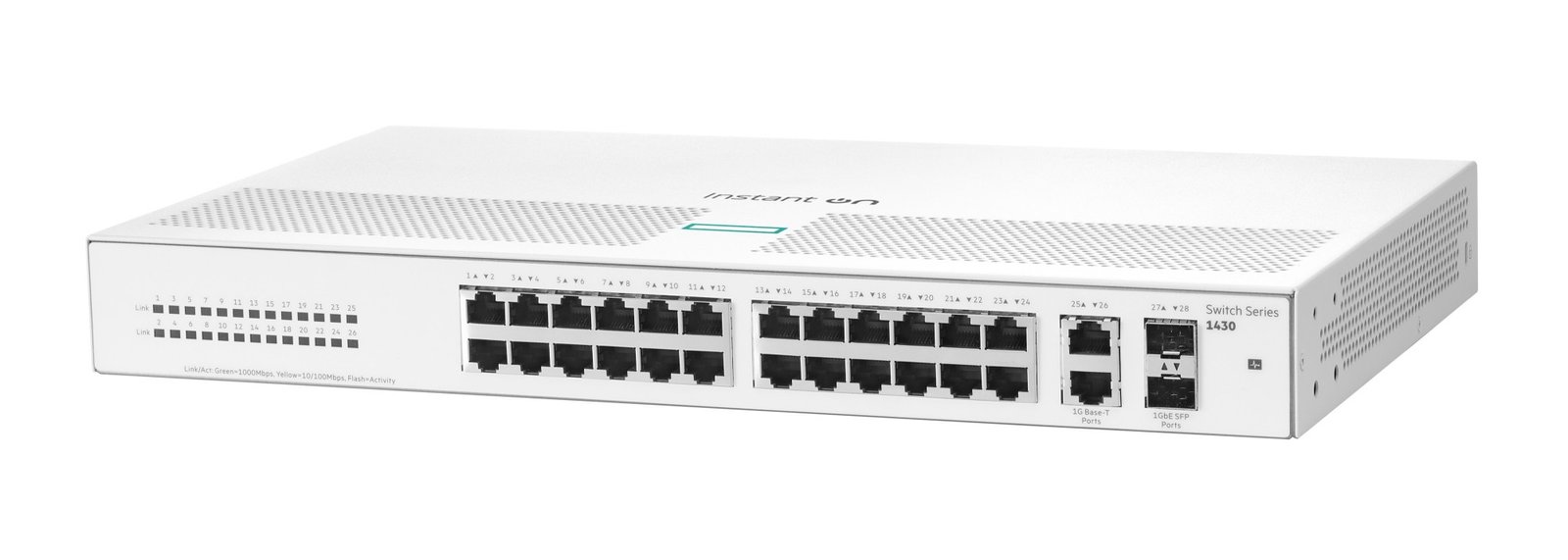

HPE Aruba Networking Networking Instant On Switch 26p Gigabit 2p SFP 1430

Brand : HPE

Part # R8R50A

Condition : New

Availability : In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Switch layer L2
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 26
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Copper ethernet cabling technology 10BASE-T, 10GBASE-TX, 1000BASE-T
Network
Auto-sensing Yes
Copper ethernet cabling technology 10BASE-T, 10GBASE-TX, 1000BASE-T
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex Yes
Flow control support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
10G support No
Data transmission
Throughput 41.68 Mpps
Latency (10-100 Mbps) 5.21 µs
Latency (1 Gbps) 2.9 µs
Packet buffer memory 12 MB
MAC address table 16384 entries
Switching capacity 56 Gbit/s
Jumbo frames support Yes
Design
Form factor 1U
Product colour White
Rack mounting Yes
Performance
Flash memory 32 MB
Fanless Yes
Packet buffer memory 12 MB
Power
Power consumption (max) 16.4 W
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Number of power supply units 1
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 15 – 90%
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 15 – 95%
Weight & dimensions
Width 386 mm
Depth 221.4 mm
Height 44 mm
Weight 2.25 kg
Technical details
Form factor 1U
Product colour White
Rack mounting Yes
Memory
Packet buffer memory 12 MB
Flash memory 32 MB
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
Manufacturer HPE
Availability Y
Meta Description Networking Instant On Switch 26p Gigabit 2p SFP 1430
