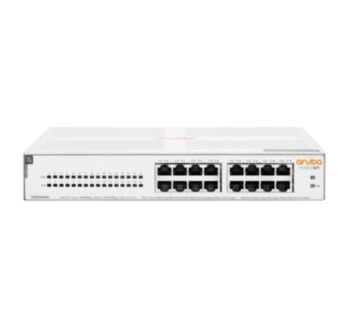

HPE Aruba Networking Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430

Brand : HPE

Part # R8R48A

Condition : New

Availability : In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Network
Auto-sensing Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex Yes
Link aggregation Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
10G support No
Data transmission
Jumbo frames 9216
Throughput 23.8 Mpps
Latency (10-100 Mbps) 2.7 µs
Latency (1 Gbps) 1.8 µs
Packet buffer memory 2 MB
MAC address table 8192 entries
Switching capacity 32 Gbit/s
Jumbo frames support Yes
Design
Form factor 1U
Product colour White
Rack mounting Yes
Performance
Fanless Yes
Packet buffer memory 2 MB
Power
Power consumption (max) 147 W
Power supply included Yes
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Number of power supply units 1
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 124 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 15 – 90%
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 15 – 95%
Weight & dimensions
Width 260 mm
Depth 275 mm
Height 44 mm
Weight 2.09 kg
Technical details
Form factor 1U
Product colour White
Rack mounting Yes
Memory
Packet buffer memory 2 MB
Other features
Ethernet LAN data rates 10,100,1000 Mbit/s
Manufacturer HPE
Availability Y
Meta Description Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430
