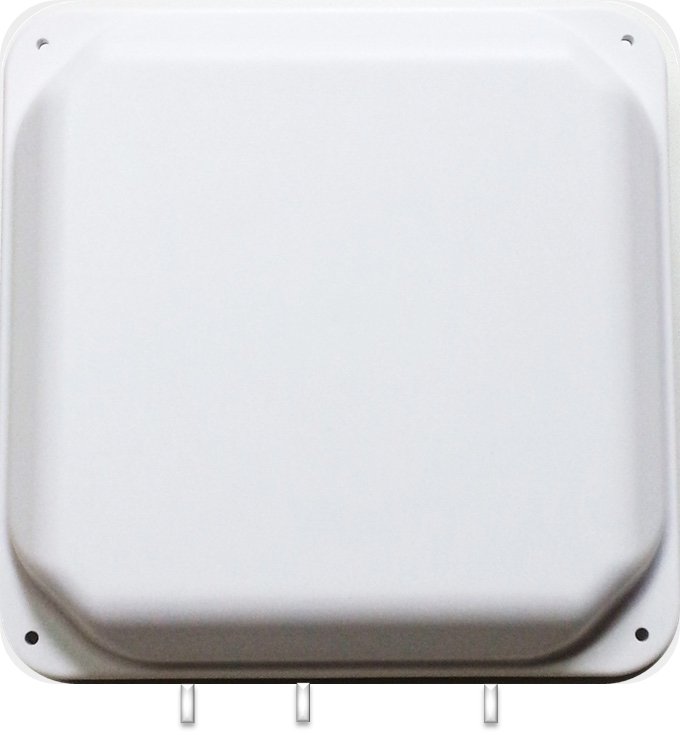

HPE Aruba Networking AP-ANT-38 network antenna Sector antenna RP-SMA 7.5 dBi

Brand: HPE

Part # JW016A

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Performance
Antenna gain level (max) 7.5 dBi
Frequency band 2.4-2.5/4.9-6.0 GHz
Vertical beam width 60°
Impedance 50 Ω
Horizontal beam width 60°
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 7.5 dBi
Features
Housing material Aluminium, Plastic
Connector gender Male
Antenna gain level (max) 7.5 dBi
Frequency band 2.4-2.5/4.9-6.0 GHz
Antenna type Sector antenna
Voltage Standing Wave Ratio (VSWR) 2:1
Vertical beam width 60°
Purpose Indoor & outdoor
Polarization Vertical polarization
Mounting Wall
Impedance 50 Ω
Horizontal beam width 60°
Product colour White
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 7.5 dBi
Antenna connector type RP-SMA
Power
Power consumption (max) 6 W
Technical details
Antenna gain level (max) 7.5 dBi
Frequency band 2.4-2.5/4.9-6.0 GHz
Antenna type Sector antenna
Voltage Standing Wave Ratio (VSWR) 2:1
Vertical beam width 60°
Purpose Indoor & outdoor
Polarization Vertical polarization
Mounting Wall
Impedance 50 Ω
Horizontal beam width 60°
Antenna gain (5 GHz) 7.5 dBi
Antenna gain (2.4 GHz) 7.5 dBi
Antenna connector type RP-SMA
Harmonized System (HS) code 85177100
Colour
Product colour White
Operational conditions
Operating temperature (T-T) -45 – 65 °C
Weight & dimensions
Width 197.5 mm
Depth 197.5 mm
Height 34.5 mm
Diameter 54.8 cm
Logistics data
Harmonized System (HS) code 85177100
Manufacturer HPE
Availability Y
Meta Description AP-ANT-38, 2.4-2.5/4.9-6.0 GHz, 7.5 dBi, 50 ohms
