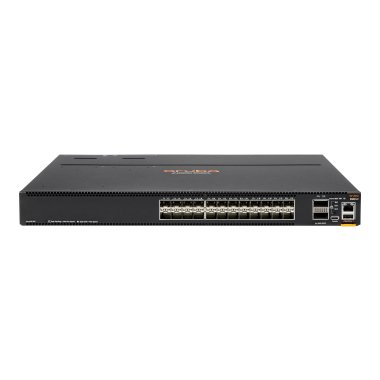

HPE Aruba JL710C#ACC Networking 8360-24XF2C v2 Managed L3 1U

Description

Management features

Multicast support

Yes

Switch type

Managed

Quality of Service (QoS) support

Yes

Switch layer

Network

IGMP snooping

Yes

IGMP entries

7000

Networking standards

IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z

VLAN support

Yes

Spanning tree protocol

Yes

Port mirroring

Yes

Number of VLANs

4094

Link aggregation

Yes

Flow control support

Yes

Ethernet LAN data rates

1000,10000,40000,100000 Mbit/s

10G support

Yes

Virtual LAN features

VLAN support

Yes

Number of VLANs

4094

Data transmission

Number of VLANs

4094

Throughput

2678 Mpps

Packet buffer memory

32 MB

MAC address table

212992 entries

Switching capacity

880 Gbit/s

Jumbo frames support

Yes

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

Optical fiber

Fiber optic connector

QSFP+, QSFP28, SFP, SFP+

Performance

Packet buffer memory

32 MB

Processor frequency

1800 MHz

Memory type

RAM / Flash

Internal memory

16384 MB

Flash memory

32768 MB

Built-in processor

Yes

Technical details

Form factor

Processor frequency

1800 MHz

Rack mounting

Yes

Built-in processor

Yes

Ports & interfaces

SFP+ module slots quantity

QSFP+ module slots quantity

Fiber optic connector

QSFP+, QSFP28, SFP, SFP+

Console port

RJ-45/USB Type-C

Security

SSH/SSL support

Yes

Security algorithms

SNMPv2, SNMPv3

IGMP snooping

Yes

Access Control List (ACL)

Yes

Authentication type

RADIUS, TACACS+

Access Control List (ACL) ingress

65536

IGMP entries

7000

Access Control List (ACL) egress

8192

DHCP features

DHCP server

Multicast features

Multicast support

Yes

Protocols

Routing protocols

BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)

Memory

Packet buffer memory

32 MB

Memory type

RAM / Flash

Internal memory

16384 MB

Flash memory

32768 MB

Design

Form factor

Rack mounting

Yes

Ventilation system

Front-to-back airflow

Airflow direction

Front-to-back airflow

Number of fans

3 fan(s)

Redundant fans support

Yes

Power

Power consumption (max)

325 W

Power supply included

Yes

AC input voltage

100 – 240 V

AC input frequency

47/63 Hz

Redundant power supply (RPS) support

Yes

Number of power supply units

Power source

Power over Ethernet (PoE)

Operational conditions

Storage temperature (T-T)

Storage relative humidity (H-H)

15 – 95%

Operating temperature (T-T)

Operating relative humidity (H-H)

15 – 95%

Heat dissipation

1280 BTU/h

Weight & dimensions

Width

442.5 mm

Depth

406.4 mm

Height

44 mm

Weight

8.07 kg

Other features

Ethernet LAN data rates

1000,10000,40000,100000 Mbit/s
