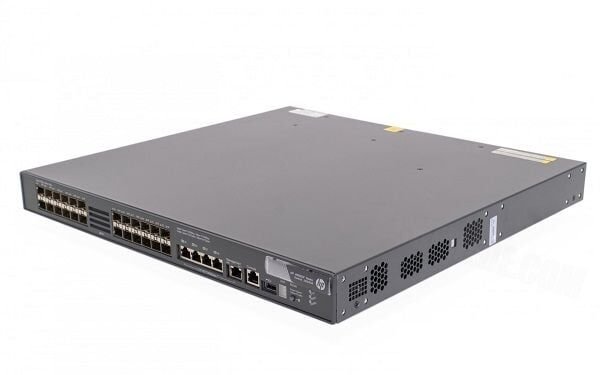

HPE 5820X-24XG-SFP+ Switch – switch – 24 ports – managed – rack-mountable

Description

The HPE JC102B 5820X-24XG-SFP+ network switch features 24 SFP+ ports supporting 10Gb speeds and four additional RJ-45 Gigabit Ethernet ports.

Its switching capacity reaches up to 488 Gbps, with a forwarding rate of up to 363 Mpps when handling standard-sized packets (64 bytes). This device supports dynamic networking needs with its MAC address table size capable of learning and storing up to 32,000 entries. The robust hardware maximizes data flow efficiency within medium-to-large IT systems by providing reliable port density for high-speed uplinks or aggregation layers in complex networks.

Specifications

Network Ports : 24x 10 Gigabit Ethernet SFP+

Uplink Ports : 4x 1 Gigabit Ethernet RJ-45

Management Ports : 1x RJ-45 Serial Console

Secondary Model Number/ Name : 5820X-24XG-SFP+

Fan Module Options : 1x JC096A Fan Tray included

Power Supplies Included : 2x PSU Slots – 1x Min PSU Required – PSU’s not included, ordered separately.

Power Supply Options : JC087A, JC680A, JG137A, JG900A

Switching Capacity : 488 Gbps

Forwarding Rate : up to 363 Mpps (64-byte packets)

MAC Address Table Size : 32000

Latency : 2.02 µs (Cut Through) 2.02 µs, (Store and Forward) (64-byte packets)

Model Number : JC102B
