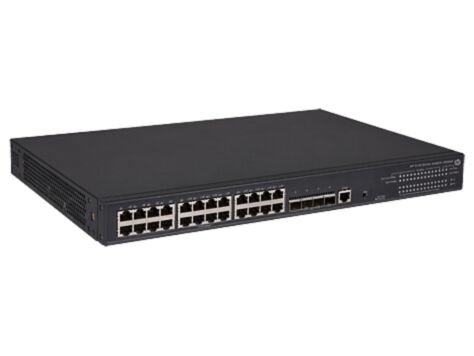

Brand: HPE
Part # JG936A
Condition: New
Availability: In Stock
Fill in the details Below For Discounted Price
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Throughput | 96 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 52.9 dB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 52.9 dB |
| Rack mounting | Yes |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| Power consumption (typical) | 460 W |
| Input current | 10 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Heat dissipation | 1569 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 43.6 mm |
| Weight | 8 kg |
