Description

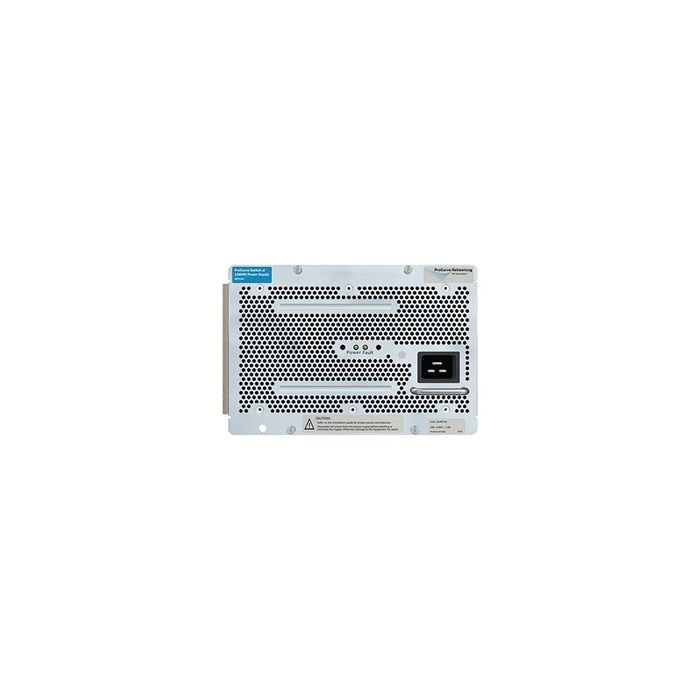

The HP J9306A#ABB (also known as the HPE ProCurve 1500W PoE+ zl Power Supply) is a high-capacity power module designed for mission-critical modular switches. It is specifically engineered to provide both system power for the switch chassis and high-density Power over Ethernet Plus (PoE+) for devices like IP cameras, wireless access points, and VoIP phones.
Key Features and Performance
-
Dual Power Delivery: Unlike standard supplies, this unit splits its output to ensure the switch remains operational while powering external devices. It provides 600W for system operations and up to 900W for PoE+ power.
-
Voltage-Dependent Scaling: The PoE power budget adjusts based on your electrical environment:
-
110–127V Input: 300W PoE+ power.
-
200–240V Input: 900W PoE+ power.
-
-
High Availability: This is a hot-swappable module, allowing you to add or replace power supplies without rebooting the switch or interrupting network traffic.
-
Smart Redundancy: When used in pairs, the modules support load sharing and automatic fault detection, instantly alerting the system via LEDs if a failure occurs.
Technical Specifications
| Attribute | Detail |
| Max Power Capacity | 1500 Watts |
| Input Voltage | 100V – 240V AC (Auto-ranging) |
| PoE Support | IEEE 802.3at (PoE+) and 802.3af (PoE) |
| Max Current | 13A (at 110V) / 10A (at 220V) |
| Weight | ~7.5 lbs (3.4 kg) |
| Dimensions | 5.1″ x 7.45″ x 6.05″ (H x W x D) |
Device Compatibility
The J9306A is designed exclusively for HP/Aruba zl series modular chassis.
Important Compatibility Note: This module cannot be mixed with older J8712A or J8713A power supplies within the same chassis or power shelf.
-
Aruba / HP 5400 zl Series: Including 5406 zl and 5412 zl chassis.
-
Aruba / HP 8200 zl Series: Including 8206 zl and 8212 zl chassis.
-
HP ProCurve Power Supply Shelf: J8714A (used to extend PoE budgets).
