Description

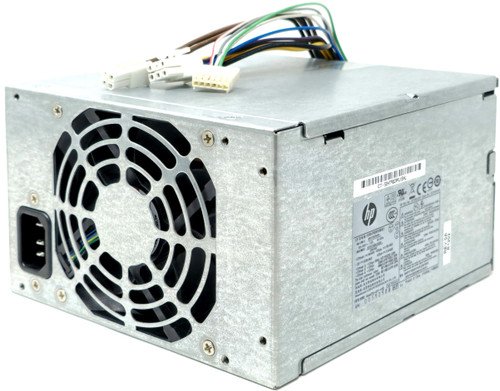

The HP 613765-001 is a 320-watt internal power supply specifically engineered for HP’s commercial desktop line, most notably the HP Compaq 8200 Elite Microtower (MT) and Convertible Minitower (CMT) series. It provides stable, efficient power delivery for professional workstations and business PCs.
Key Features & Performance
-
Reliable Power Delivery: Offers 320W of total output, providing consistent energy to critical components like the CPU, motherboard, and storage drives.
-
Energy Efficiency: Many units are 89PLUS or 90% high-efficiency rated, which helps reduce energy consumption and minimizes heat generation during operation.
-
Active PFC: Features Active Power Factor Correction, which improves the efficiency of power delivery and handles fluctuations in input voltage more effectively.
-
Specialized Connectors: Utilizes HP’s proprietary connector set (typically 6-pin and 4-pin configurations) rather than standard 24-pin ATX connectors, ensuring a secure fit for supported HP motherboards.
Technical Specifications
| Attribute | Details |
| Part Number | 613765-001 (Spare), 611484-001 (Standard) |
| Model Number | D10-320P2A, DPS-320NB A, PC8022 |
| Wattage | 320 Watts |
| Input Voltage | 100V – 240V AC (Auto-ranging) |
| Output Voltage | +12V DC (Multiple rails) |
| Form Factor | Internal Proprietary (Fits MT/CMT Chassis) |
Compatibility
This power supply is strictly compatible with specific HP Business Desktop models. It is not compatible with Small Form Factor (SFF) or Ultra-Slim (USDT) models due to physical size differences.
-
Elite Series: 8000, 8100, 8200, and 8300 Elite MT/CMT.
-
Pro Series: 6000, 6200, and 6300 Pro MT.
-
Workstations: HP Z200 and Z210 (Tower versions).
