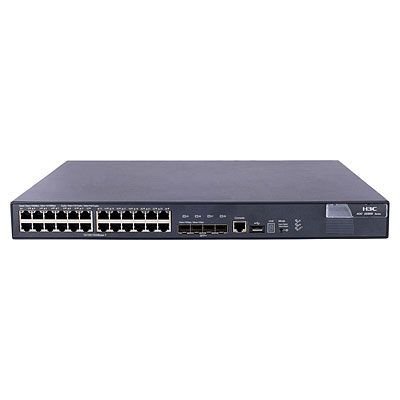

Brand: HPE
Part # JC100A
Condition: New
Availability: In Stock
Fill in the details Below For Discounted Price
| Management features | |
|---|---|
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-T,100BASE-TX,10BASE-T |
| SFP/SFP+ slots quantity | 4 |
| DC-in jack | Yes |
| Expansion slots | 4x SFP + 1 Exp sl |
| Networking | |
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Data transmission | |
| Throughput | 155 mpps |
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 208 Gbit/s |
| Protocols | |
| Management protocols | IMC, SNMP, Telnet, HTTPS, RMON1, FTP |
| Design | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Form factor | 1U |
| Colour of product | Black |
| LED indicators | Yes |
| Electromagnetic compatibility | VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
| Certification | RoHs |
| Rack mounting | Yes |
| Performance | |
| Packet buffer memory | 4 MB |
| Stackable | No |
| Noise level | 52.9 dB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Weight & dimensions | |
| Weight (imperial) | 13.23 |
| Dimensions (W x D x H) (imperial) | 364.5 x 439.9 x 43.7 mm (14.3 x 17.3 x 1.72″) |
| Weight | 6 kg |
| Power | |
| Power consumption (typical) | 15.4 W |
| Input voltage | 100 – 240 |
| Technical details | |
| Form factor | 1U |
| Colour of product | Black |
| Stackable | No |
| Noise level | 52.9 dB |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Certificates | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Electromagnetic compatibility | VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
| Certification | RoHs |
| Memory | |
| Packet buffer memory | 4 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Heat dissipation | 358 BTU/h |
| Other features | |
| Latency | 4.02 µs |
| Dimensions (WxDxH) | 467 x 440 x 43.6 mm |
| Wi-Fi | Yes |
| Power supply type | AC |
| Power LED | Yes |
| Networking features | Gigabit Ethernet |
| Input voltage | 100 – 240 |
| Input frequency | 50 / 60 |
| Expansion slots | 4x SFP + 1 Exp sl |
| Weight (imperial) | 13.23 |
| Dimensions (W x D x H) (imperial) | 364.5 x 439.9 x 43.7 mm (14.3 x 17.3 x 1.72″) |
