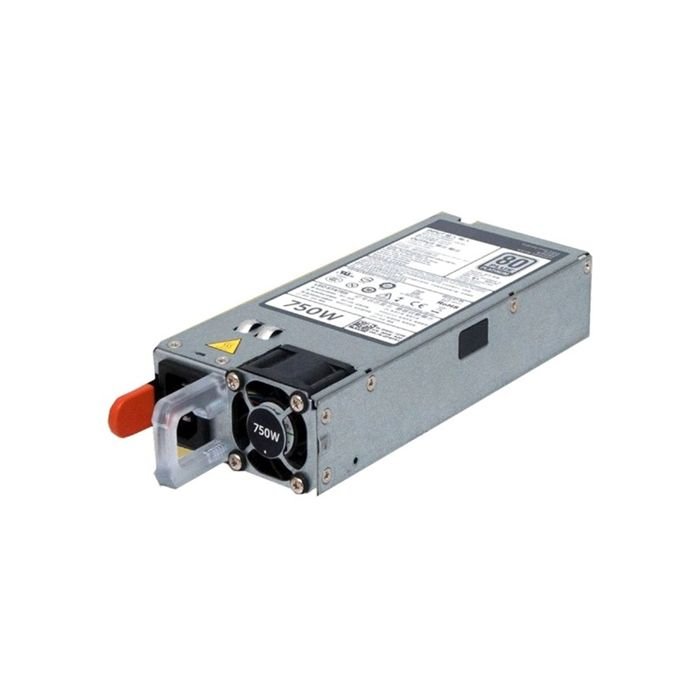

Dell V1YJ6 750W Hot Swap Power Supply For Poweredge R630 T430 T630

Description

The Dell V1YJ6 is a high-efficiency 750-watt hot-plug AC power supply specifically engineered for Dell’s 13th and 14th Generation PowerEdge servers. It is a critical component for maintaining high availability in enterprise environments, offering the “Zero Interference” power stability required for mission-critical rack and tower configurations.

Core Product Overview

This power supply features an 80 PLUS Platinum efficiency rating, meaning it converts up to 94% of input power into usable energy, significantly reducing heat waste and cooling costs. Its hot-swappable design allows for seamless replacement or the addition of a second unit for N+1 redundancy without powering down the server.

Key Technical Specifications

• Wattage: 750 Watts

• Efficiency: 80 PLUS Platinum (EPP – Extended Power Performance)

• Input Voltage: 100V – 240V AC (Auto-ranging)

• Input Frequency: 50/60 Hz

• Maximum Current: 10 A

• Heat Dissipation: 2891 BTU/hr (maximum)

• Redundancy: Supports full redundant (1+1) configuration

• Part Numbers: V1YJ6, 0V1YJ6, 5RHVV, G6W6K, 953MX (Interchangeable variants)

Compatibility

The V1YJ6 is highly versatile, supporting both 13G and 14G Dell infrastructure:

• PowerEdge Rack Servers: R530, R540, R630, R640, R730, R730xd, R740, R740xd, R840, R940.

• PowerEdge Tower Servers: T330, T430, T440, T630, T640.

• Precision Workstations: Rack 7910, 7920.

• Dell EMC Storage: NX3240, NX3340, VRTX, FX2.
