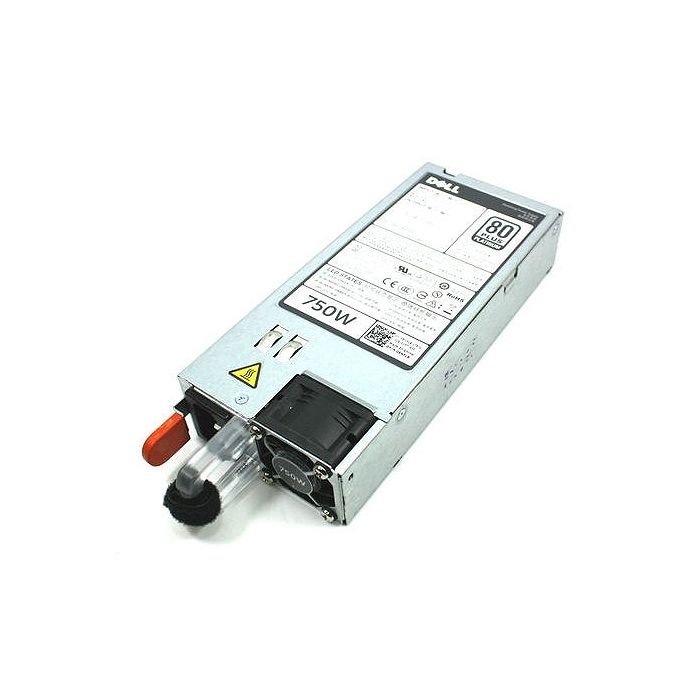

Dell 0N30P9 750Watt Redundant Power Supply for Poweredge Server

Description

The Dell 0N30P9 is a high-performance, 750-watt hot-plug AC power supply designed for Dell’s 12th and 13th generation PowerEdge servers. This unit is part of Dell’s Platinum-certified energy-efficient line, which helps reduce operational costs by minimizing power loss and heat generation.

Core Product Overview

This power supply unit (PSU) is engineered for redundant configurations in mission-critical environments. Its hot-swappable design allows it to be replaced or added while the server is still running, ensuring your network experiences “zero interference” or downtime. At Hardware Hive Technologies, we recommend this PSU for businesses that need a reliable, mid-range power output for virtualization, databases, and web serving.

Key Technical Specifications

• Wattage: 750 Watts

• Efficiency: 80 PLUS Platinum (Up to 94% efficiency)

• Input Voltage: 100V – 240V AC (Auto-ranging)

• Input Frequency: 50/60 Hz

• Form Factor: Hot-Plug Module

• Cooling: Integrated active cooling fan

• Protection: Built-in over-voltage (OVP), over-current (OCP), and short-circuit (SCP) protection.

• Part Numbers: 0N30P9, N30P9, D750E-S1, DPS-750AB-9 A.

Compatibility

The 0N30P9 is a versatile unit compatible with several Dell PowerEdge and Precision models:

• PowerEdge Rack Servers: R620, R720, R720xd, R820, R530, R630, R730, R730xd.

• PowerEdge Tower Servers: T430, T630.

• PowerVault Storage: MD1200, MD1220, MD3200, MD3220.

• Precision Workstations: Rack 7910.
