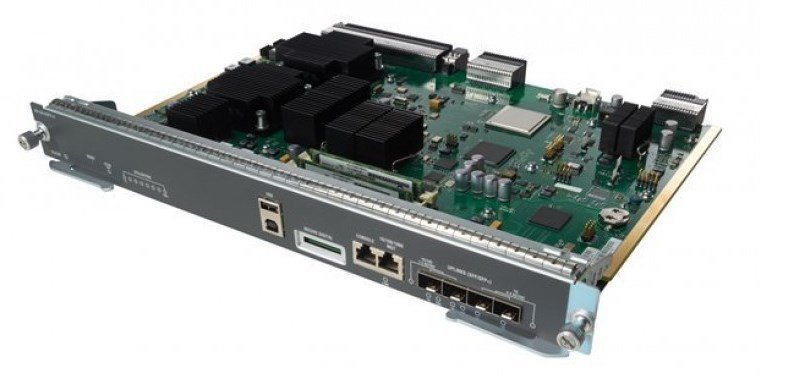

Cisco WS-X45-SUP8-E network switch module

Brand: Cisco

Part # WS-X45-SUP8-E

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

More Information
SKU WS-X45-SUP8-E
Specification
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Quality of Service (QoS) support Yes
Number of VLANs 4094
Access Control List (ACL) Yes
Technical details
Bandwidth 48 Gbit/s
Queues per port 8
MAC address table 55000 entries
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Compatibility Cisco Catalyst 4500E
Address Resolution Protocol (ARP) entries 47000
Data transmission
Bandwidth 48 Gbit/s
Switching capacity 928 Gbit/s
Number of VLANs 4094
MAC address table 55000 entries
Forwarding rate 250 Mpps
Address Resolution Protocol (ARP) entries 47000
Ports & interfaces
SFP module slots quantity 4
Performance
Queues per port 8
Compatibility Cisco Catalyst 4500E
Management features
Quality of Service (QoS) support Yes
Access Control List (ACL) Yes
Security
Access Control List (ACL) Yes
Power
Power consumption (typical) 400 W
Operational conditions
Storage temperature (T-T) -40 – 75 °C
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 90%
Operating altitude -60 – 3000 m
Certificates
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Electromagnetic compatibility 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024, CISPR24, EN300386
Certification RoHS5
Manufacturer Cisco
Availability Y
Meta Description Catalyst 4500E Series Supervisor, 928 Gbps, Spare
