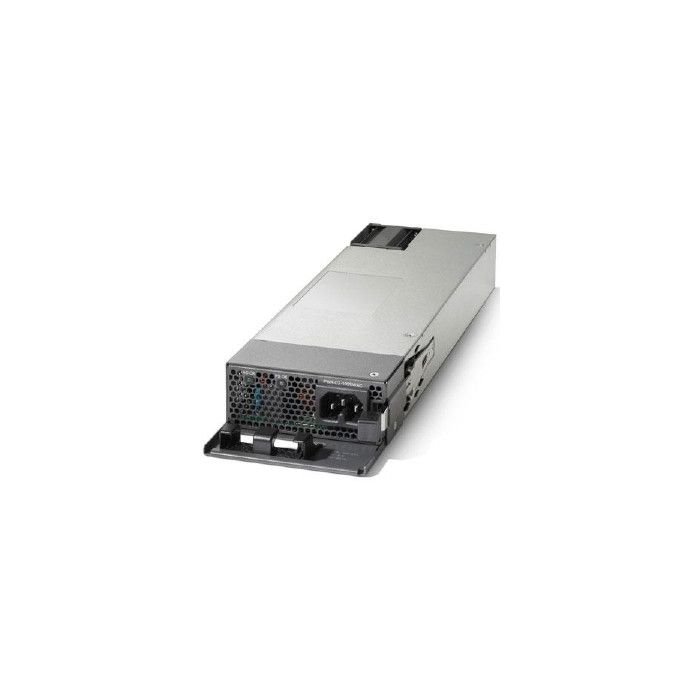

Cisco PA-2102-1-LF 1025 Watt Switching Power Supply Catalyst 2960-X

Description

The Cisco PA-2102-1-LF is a high-capacity 1025-watt AC switching power supply designed primarily for the Cisco Catalyst 2960-X and 2960-XR series switches. It provides the heavy-duty power required to support extensive Power over Ethernet Plus (PoE+) budgets, enabling the switch to provide power to numerous high-demand devices like IP cameras, VoIP phones, and wireless access points.

Core Product Overview

This power supply is an internal, hot-swappable module that enhances the reliability and power capacity of your networking hardware. In the 2960-XR series, it can be used as a primary or secondary redundant power supply to ensure “zero interference” in network uptime. Its high wattage is essential for 48-port PoE+ configurations where a significant power budget (up to 740W of PoE) is required across all ports.

Key Technical Specifications

• Wattage: 1025 Watts

• Device Type: Switching Power Supply – Internal

• Input Voltage Range: 100V – 240V AC (Auto-ranging)

• Frequency Range: 47 – 63 Hz

• Efficiency: High-efficiency design optimized for lower total cost of ownership (TCO).

• Cooling: Integrated active fan for thermal management.

• Indicator: Front-panel LED status indicator (Green for normal, Red for failure).

• Part Numbers: PA-2102-1-LF, PWR-C2-1025WAC, 341-0533-01.

Compatibility

While primarily associated with the 2960-X family, this PSU is validated for:

• Cisco Catalyst 2960-X Series: (e.g., WS-C2960X-48FPS-L)

• Cisco Catalyst 2960-XR Series: (e.g., WS-C2960XR-48FPD-I)

• Cisco Catalyst 3650 Series: Supported in certain configurations requiring 1025W AC.
