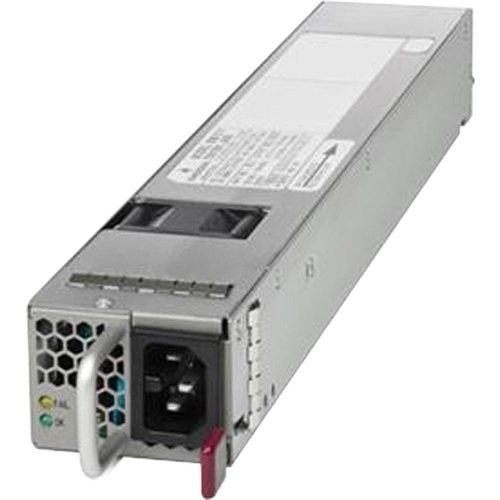

Cisco Cat 4500X 750W AC FtB 750W Grey power supply unit

Brand : Cisco

Part no : C4KX-PWR-750AC-R

Availability : In stock

د.إ2,552.00

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Specifications



Product Code C4KX-PWR-750AC-R=
AC-input type Autoranging input with power factor correction (PFC)
AC-input voltage 100 to 240?VAC (115/230?VAC nominal) single-phase
AC-input current 11?A @ 100?VAC (max)
6?A @ 200?VAC (max)
AC-input frequency 47 to 63?Hz (50/60?Hz nominal)
Branch circuit requirement Each chassis power supply should have its own dedicated, fused-branch circuit:

*For North America—15?A
*For International—Circuits should be sized to local and national codes
*All AC power supply inputs are fully isolated.
*Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from *phase?A and PS2 can be operating from phase?B.

Power supply output capacity 750 W
Power supply output 12?VDC @ 62?A
3.3?VDC @ 3?A
Output holdup time 16 ms minimum (20?ms @ 60% load)
BTU (total output) 1122?BTU/hour (nominal)

1365?BTU/hour (max)

AC-input power supply dimensions
(H x W x D)
1.57 x 2.15 x 14.28?in?
(3.99 x 5.46 x 36.27?cm)
Weight 2?lb (0.91?kg)
