| Model Number |

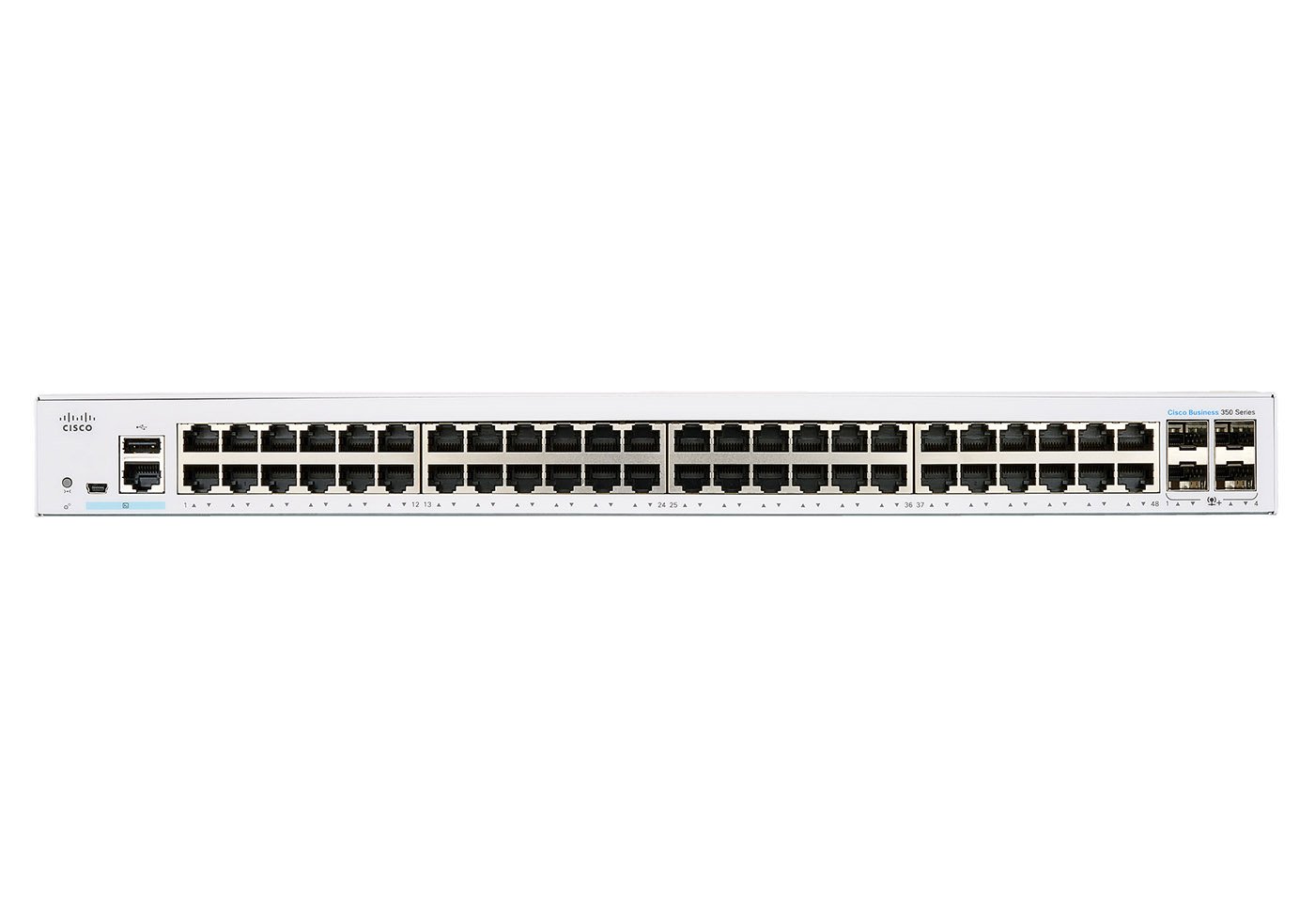

CBS350-48T-4G-NA-RF |
| Total System Ports |
52 Ports |
| Downlink Ports |
48x 10/100/1000 Mbps (Gigabit Ethernet) RJ45 |
| Uplink Ports |
4x 1G SFP (Dedicated Fiber Uplinks) |
| PoE Support |
None (Data only) |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Mpps (64-byte packets) |
| CPU / Memory |
800 MHz ARM / 512 MB RAM / 256 MB Flash |
| Layer 3 Routing |
IPv4/IPv6 Static Routing (up to 990 routes) |
| VLAN Support |
Up to 4,094 VLANs simultaneously |
| Security Features |
IEEE 802.1X, ACLs, Guest VLAN, DoS Prevention, DHCP Snooping |
| Management |
Cisco Business Dashboard, Web UI, CLI, SNMP, Mobile App |
| Stacking |
True Stacking (up to 4 units in a single stack) |
| Acoustics |
Fanless (Silent design, 0 dB) |
| Power Supply |
Internal (100–240V AC) |
| Dimensions (WxDxH) |
17.5 x 11.12 x 1.73 in (44.5 x 28.2 x 4.4 cm) |
| Form Factor |
1RU (Rack-mountable, includes rack kit) |
| Weight |
8.05 lbs (3.65 kg) |
| Green Features |
EEE (802.3az), Energy Detect, Short Reach Mode |
