| Model Number |

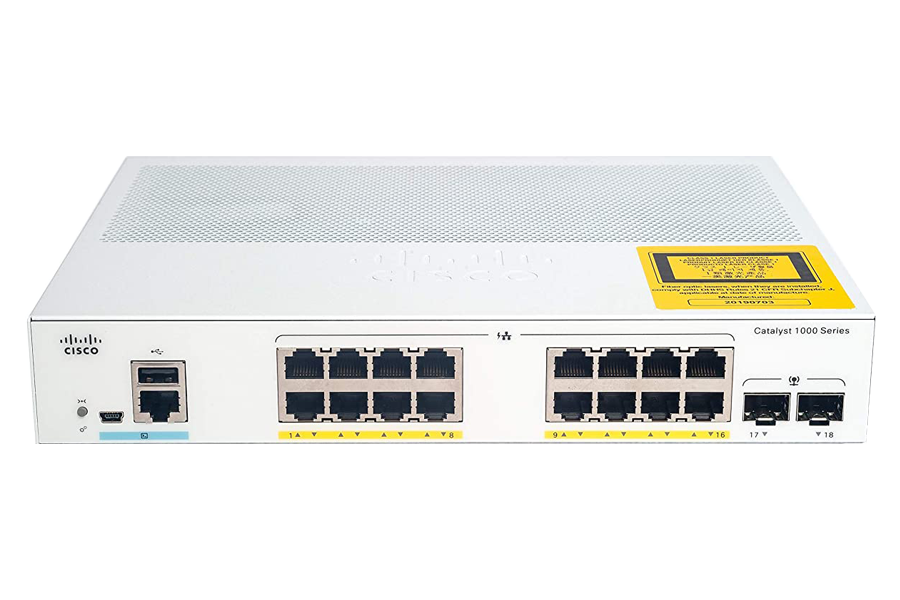

C1000-16T-2G-L-RF (Cisco Certified Remanufactured) |
| Port Density |
16x 10/100/1000 Base-T (Gigabit Ethernet) RJ45 |
| Uplink Interfaces |
2x 1G SFP (Fiber) or RJ45 Combo ports |
| PoE Support |
None (Data only model) |
| Switching Bandwidth |
36 Gbps |
| Forwarding Rate |
26.78 Mpps (64-byte packets) |
| CPU / Memory |
ARM v7 800 MHz / 512 MB RAM / 256 MB Flash |
| MAC Address Table |
16,000 entries |
| VLAN Support |
256 active VLANs; 4,094 VLAN IDs |
| Layer 2 Features |
STFP, RSTP, MSTP, 802.1Q Trunking, Link Aggregation (LACP) |
| Layer 3 Features |
Static Routing (up to 16 routes) |
| Security |
802.1X, IPv6 First Hop Security, ACLs, DHCP Snooping, BPDU Guard |
| Management |
Cisco IOS CLI, Web UI (On-box), Bluetooth, SNMP v3, sFlow |
| Console Ports |
RJ-45 Ethernet, USB Mini-B, and USB-A (for storage/Bluetooth) |
| Acoustics |
Fanless (0 dB – completely silent operation) |
| Power Consumption |
14.26W (Maximum load) / 10.74W (Idle) |
| Dimensions (WxDxH) |
10.56 x 10.69 x 1.73 in (26.8 x 27.2 x 4.4 cm) |
| Form Factor |
1RU (Rack-mountable, desktop, or wall-mount) |
| Weight |
3.92 lbs (1.78 kg) |
| MTBF |
2,165,105 hours (Mean Time Between Failures) |
