Brand: Norden
Part # ENC-HCD7F-35R-35
Condition: New
Availability: In Stock
Fill in the details Below For Discounted Price
|
Model No. |
ENC-HCD7F-35R-35 | |
|
Type |

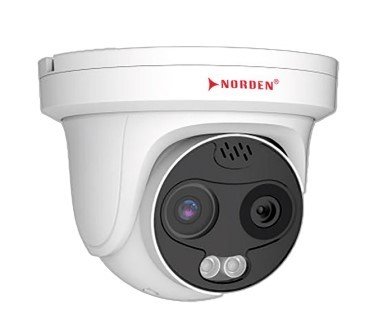

4MP THERMAL DOME CAMERA |
|
| Detector Type | Uncooled VOx Micro Bolometer | |
| Effective Pixels | 256×192 and Image can be scaled up to 704×576 | |
| Pixel Size | 12 μm | |
| Thermal Sensitivity | ≤50 mK | |
| Spectral Range | 8 ~ 14 um | |
| Image Settings | Brightness , Sharpness, Contrast, Saturation, Mirror | |
| Color Palettes | White-Hot / Black-Hot / Rainbow / Ironbow etc. up to 17 modes | |
| Iris | Fixed IRIS | |
|
|
Lens |
Fixed |
|
Focus |
Free Focus | |
| Focal Length | 3.5 mm | |
| F No | F1.0 | |
| Angle of View | 48.0°(H), 36.0°(V) | |
| Detection | Human(1.8mx0.5m) – 146 m, Vehicle(4.0mx1.5m) – 447m | |
| Recognition | Human(1.8mx0.5m) – 36 m, Vehicle(4.0mx1.5m) – 112 m | |
| Identification | Human(1.8mx0.5m) – 18 m, Vehicle(4.0mx1.5m) – 56 m | |
| Fire Detection | Fire(0.2mx0.2m) – 41.7 m | |
| Image Sensor | 1/2.7″ CMOS | |
| Day / Night | IR Cut Filter with Auto Switch | |
| Max. Resolution | 2560×1440 | |
| Focal Length | 4 mm Lens | |
| Focus Control | Fixed Lens | |
| Angle of View (H) | 92.0° | |
| Angle of View (V) | 46.0° | |
| Angle of View (D) | 102.8° | |
| Max. Aperture | F1.6 | |
| Digital Zoom | 16x | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto / Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.2, B/W: 0.0003 lux, 0 lux with IR | |
| AGC | Auto / Manual | |
| Digital Noise Reduction | 2D & 3D DNR, Auto / Manual | |
| S/N Ratio | ≥55dB | |
| WDR | 120 dB | |
| Strobe Light | Supported | |
| Smart IR | Up to 35 m | |
| Wavelength | 850 nm | |
| Detection | 85.4 m | |
| Observation | 34.2 m | |
| Recognition | 17.1 m | |
| Identification | 8.5 m | |
|
|
Video Compression |
Enhanced (H.265, H.264), H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: Thermal: (704×576) @ 25fps; Visible: (2560×1440, 2304×1296, 1920×1080, 1280×720) @ 25fps
Sub Stream: Thermal: (704×576, 352×288, 256×192) @ 25fps; Visible: (704×576, 640×480) @ 25fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| Bitrate Type | CBR, VBR | |
| Video Bit Rate | Thermal: 100Kbps ~ 3Mbps
Visible: 100Kbps ~ 12Mbps |
|
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Day/Night (Color, Mono, Auto), Flip/Mirror/Rotation, Multiple Scene & Profile | |
| White Balance | Auto, Day/Night, Tungsten, Fluorescent, Shadow, Manual | |
| DVE Image Enhance | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| Defog | Supported | |
| OSD | Up to 6 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (Small / Medium / Big), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 5 regions | |
|
|
Audio Compression | G.711A , G.711U, RAW_PCM |
| Audio Bitrate | 64 kbps, 128 kbps | |
| Audio I/O | 1/1 | |
| Built-in Mic | Supported | |
|
|
Behaviour Detection |
Thermal/Visible: Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
|
Intelligent Identification |
Thermal/Visible: Loitering, Region Entry / Exit Detection
Thermal: Flame Point Detection, Smoker Detection Visible: Smoke Detection, Flame Detection |
|
| Statistical Analysis | Thermal/Visible: People Counting, Wrong Way Detection, Human and Vehicle Detection, Temperature Detection | |
| Alarm Management | Motion Detection, Disk Full Alarm, Temperature Alarm, Input / Output Alarm, Network Alarm, Flashing Light and Horn warning | |
| Alarm Notification | E-mail (Notification and Snapshot), HTTP (Alarm Icon), FTP (Snapshot and Recording), SD Card (Recording) | |
| Detection Mode | Area, Spot, Line (Total 20 Rules – 1 Full Screen and 19 others) | |
| Alarm | Over / Difference Temperature Alarm | |
| Accuracy | ±2℃ / ±2% | |
| Response Time | ≤ 30ms | |
| Measurement range | -20°C ~ 150°C (-4°F ~ 302°F) | |
|
|
Protocols |
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTCP, RTSP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), IGMP, 802.1x, QoS, Unicast, SNMP, ARP |
| Security | AES 128/256 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), HTTPS Authentication, Digest Authentication, User Access Log | |
|
Compatibility |
ONVIF Profile (S, G, T, M), CGI/SDK | |
| Network | 1x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Serial Interface | 1xRS485 | |
| Edge Storage | SD card slot, up to 512 GB | |
| Alarm I/O | 1/1 | |
| Built-in Speaker | Supported | |
| Max User | 32 | |
| Client Application | EyeGuard | |
|
|
Power Supply | 12V DC/24V DC, PoE (IEEE 802.3af) |
| Max. Power Consumption | ≤10 W | |
| Working Temperature | -40 °C ~ 65 °C | |
| Working Humidity | ≤95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | TVS4000V | |
| Reset Button | Supported | |
| Dimensions | Φ140 × 117.7 mm | |
| Weight | 1.03 Kg |
