Brand: Norden
Part # ENC-HBU7F-55R-35
Condition: New
Availability: In Stock
Fill in the details Below For Discounted Price
| MODEL |
Model No. |
ENC-HBU7F-55R-35 |
|
Type |

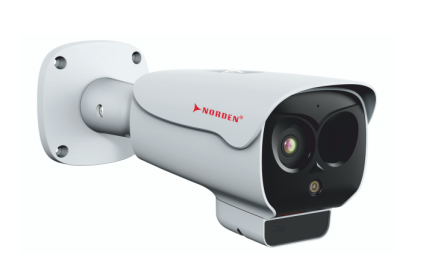

4MP THERMAL BULLET CAMERA |
|
|
THERMAL CAMERA |
Detector Type | Vanadium Oxide Uncooled VOx Focal Plane Arrays |
| Effective Pixels | 256×192 and Image can be scaled up to 704×576 | |
| Pixel Size | 12 μm | |
| Thermal Sensitivity | ≤50 mK | |
| Spectral Range | 8~14 µm | |
| Image Settings | Brightness, Sharpness, Contrast, Saturation, 2D/3D DNR, Mirror / Flip, FFC | |
| Color Palettes | White & Black Hot, Ironbow, Rainbow etc. up to 17 modes | |
| Iris | Fixed IRIS | |
|
THERMAL LENS |
Lens Type |
Fixed |
|
Focus |
Fixed Focus | |
| Focal Length | 3.5 / 7 / 10 mm | |
| F No | F1.0 | |
| Angle of View | 3.5 mm: 48.0°(H), 36.0°(V)
7 mm: 24.0°(H), 18.0°(V) 10 mm: 17.0°(H), 13.0°(V) |
|
| Detection | 3.5 mm: Human (1.8mx0.5m) – 146 m, Vehicle (4.0mx1.5m) – 447 m
7 mm: Human (1.8mx0.5m) – 292 m, Vehicle (4.0mx1.5m) – 894 m 10 mm: Human (1.8mx0.5m) – 417 m, Vehicle (4.0mx1.5m) – 1278 m |
|
| Recognition | 3.5 mm: Human (1.8mx0.5m) – 36 m, Vehicle (4.0mx1.5m) – 112 m
7 mm: Human (1.8mx0.5m) – 73 m, Vehicle (4.0mx1.5m) – 224 m 10 mm: Human (1.8mx0.5m) – 104 m, Vehicle (4.0mx1.5m) – 319 m |
|
| Identification | 3.5 mm: Human (1.8mx0.5m) – 18 m, Vehicle (4.0mx1.5m) – 56 m
7 mm: Human (1.8mx0.5m) – 36 m, Vehicle (4.0mx1.5m) – 112 m 10 mm: Human (1.8mx0.5m) – 52 m, Vehicle (4.0mx1.5m) – 160 m |
|
| Fire Detection | 3.5 mm: Fire (0.2mx0.2m) – 29.2 m, Fire (0.1mx0.1m) – 146 m
7 mm: Fire (0.2mx0.2m) – 58.3 m, Fire (0.1mx0.1m) – 292 m 10 mm: Fire (0.2mx0.2m) – 83.3 m, Fire (0.1mx0.1m)- 417 m |
|
|
VISIBLE CAMERA |
Image Sensor | 1/2.7″ CMOS |
| Max Resolution | 2880×1620 | |
| Focal Length | 4 mm for 3.5 mm Thermal Lens
8 mm for 7 / 10 mm Thermal Lens |
|
| Focus Control | Fixed | |
| Angle of View (H) | 92.0° (4 mm), 40.0° (8 mm) | |
| Angle of View (V) | 46.0° (4 mm), 20.0° (8 mm) | |
| Angle of View (D) | 100.3° (4 mm), 44.7° (8 mm) | |
| Max Aperture | 4 mm @ F1.6, 8 mm @ F2.0 | |
| Digital Zoom | 8x | |
| Shutter Speed | 1s ~ 1/100,000s, Auto Manual | |
| Min. Illumination | Color: 0.001 lux @ F1.6/F2.0, B/W: 0.0001 lux, 0 lux with IR | |
| AGC | Auto / Manual | |
| Defog | Supported | |
| S/N Ratio | ≥55dB | |
| WDR | 120dB | |
| Smart IR | Up to 55 m | |
| White Light | Supported | |
| Detection | 72.0 m (4 mm), 146.0 m (8 mm) | |
| Observation | 28.8 m (4 mm), 58.4 m (8 mm) | |
| Recognition | 14.4 m (4mm), 29.2 m (8mm) | |
| Identification | 7.2 m(4 mm), 14.6 (8 mm) | |
|
VIDEO |
Video Compression |
Enhanced (H.265, H.264), H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: Thermal: 704×576 @25 fps;
Visible: (2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720) @25fps Sub Stream: (704×576, 352×288, 256×192) @ 25 fps; Visible: (704×576, 640×480) @25fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| Bitrate Type | CBR, VBR | |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Day/Night (Color, Mono, Auto), Flip/Mirror/Rotation, Multiple Scene & Profile | |
| White Balance | Auto, Day/Night, Tungsten, Fluorescent, Shadow, Manual | |
| Video Bit Rate | Thermal: 10kbps ~ 3Mbps
Visible: 10kbps ~ 12Mbps |
|
| DVE Image Enhance | Supported | |
| HLC | Supported | |
| BLC | Supported | |
| OSD | Up to 8 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (Small / Medium / Big), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Mask | Up to 5 regions | |
|
AUDIO |
Audio Compression | G.711A, G.711U, RAW_PCM |
| Audio Bitrate | 64 kbps, 128kbps | |
| Audio I/O | 1/1 | |
| Built-in Speaker | Supported | |
|
SMART |
Behaviour Detection |
Thermal/Visible: Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
| Intelligent Identification | Thermal/Visible: Loitering, Region Entry / Exit
Detection Thermal: Flame Point Detection, Smoker Detection Visible: Smoke Detection, Flame Detection |
|
| Statistical Analysis | Thermal/Visible: People Counting, Wrong Way Detection, Human and Vehicle Detection, Temperature Detection | |
| Alarm Management | Motion Detection, Input & Output Event, Network Alarm, Disk Alarm, Day Night Switch Alarm, Abnormal Audio Alarm, Pre/Post Alarm Recording, Alarm Recording/Snapshot, White Light Flashing and Voice Message Warning | |
| Alarm Notification | E-mail (Notification and Snapshot), HTTP (Alarm Icon), FTP (Snapshot and Recording), SD Card (Recording) | |
|
TEMPERATURE |
Detection Mode | Spot, Line, Area (Total 20 Rules – 1 Full Screen and 19 others) |
| Alarm | Over / Difference Temperature Alarm | |
| Accuracy | ±2℃ / ±2% | |
| Response Time | ≤30ms | |
| Measurement Range | -20°C ~ 150°C
(-4°F ~ 302°F) |
|
|
INTERFACE |
Protocols |
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTCP, RTSP, PPPoE, NTP, UPnP, SMTP (SSL/TLS), IGMP, 802.1x, QoS, Unicast, SNMP, ARP |
| Security | AES 128/256 Video Encryption, IP Filter, User Authentication (Multiple Privilege Level), HTTPS Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF Profile (S, G, T, M), CGI/SDK | |
| Network | 1x RJ45 10M/100M Self Adaptive Ethernet Port | |
| Serial Interface | 1xRS485 | |
| Edge Storage | Micro SD Card Slot, up to 512 GB | |
| Alarm I/O | 2 / 2 | |
| Max User | 32 | |
| Client Application | EyeGuard | |
|
GENERAL |
Power Supply | 12V DC / 24V DC, PoE (IEEE 802.3af) |
| Max. Power Consumption | ≤12 W | |
| Working Temperature | -40°C ~ 65°C | |
| Working Humidity | ≤95% RH | |
| Casing | Metal | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | TVS4000V | |
| Reset Button | Supported | |
| Dimensions | 303×95×107 mm | |
| Weight | 1.35 Kg |
