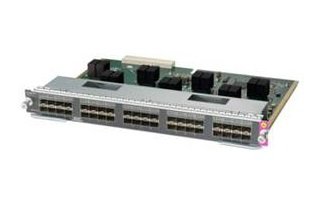

Cisco WS-X4640-CSFP-E network switch module Gigabit Ethernet

Brand: Cisco

Part # WS-X4640-CSFP-E

Condition: New

Availability: In Stock

FREE SHIPPING

SECURE CHECKOUT

EASY RETURNS

UAE BASED SUPPORT TEAM

NEED HELP?

QUICK QUOTE

Fill in the details Below For Discounted Price

Description

Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x
Jumbo frames support Yes
Ethernet LAN data rates 100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Quality of Service (QoS) support Yes
Optical fiber
Fiber optic connector SFP
Ports & interfaces
SFP module slots quantity 40
Performance
Quality of Service (QoS) support Yes
Mean time between failures (MTBF) 347724 h
Compatibility Catalyst 4500
Power
Power consumption (typical) 120 W
Operational conditions
Storage temperature (T-T) -40 – 75 °C
Operating temperature (T-T) 32 – 104 °F
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 90%
Operating altitude -60 – 3000 m
Certificates
Safety UL 1950, EN 60950, CSA-C22.2 no 950, IEC 950, IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic compatibility FCC 15J Class A, VCCI Class A, CE Marking, EN 55022 Class A, EN 55024 Class A, CISPR 22 Class A, AS/NZ 3548, NEBS Level 3 (GR-1089-CORE, GR-63-CORE), ETSI ETS-300386-2, EN 50121-4
Certification RoHS5
Weight & dimensions
Dimensions (WxDxH) 362 x 273 x 30 mm
Technical details
Operating temperature (T-T) 32 – 104 °F
Fiber optic connector SFP
Ethernet LAN data rates 100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Compatibility Catalyst 4500
Management features
Quality of Service (QoS) support Yes
Endurance
Mean time between failures (MTBF) 347724 h
Manufacturer Cisco
Availability Y
Meta Description Catalyst 4500E Series 40 SFP/80 C-SFP Port 1000BaseX (SFPs Optional)
