Brand: Cisco

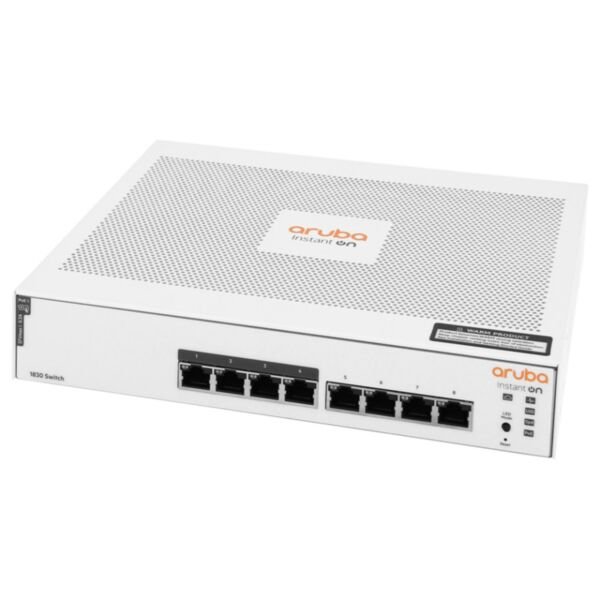

Part # JL811A
Availability: In Stock
Fill in the details Below For Discounted Price
| Network | |
|---|---|
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| Throughput | 11.9 Mpps |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 2.8 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 83.67 W |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 15 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 195 mm |
| Height | 43.9 mm |
| Weight | 1.54 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
